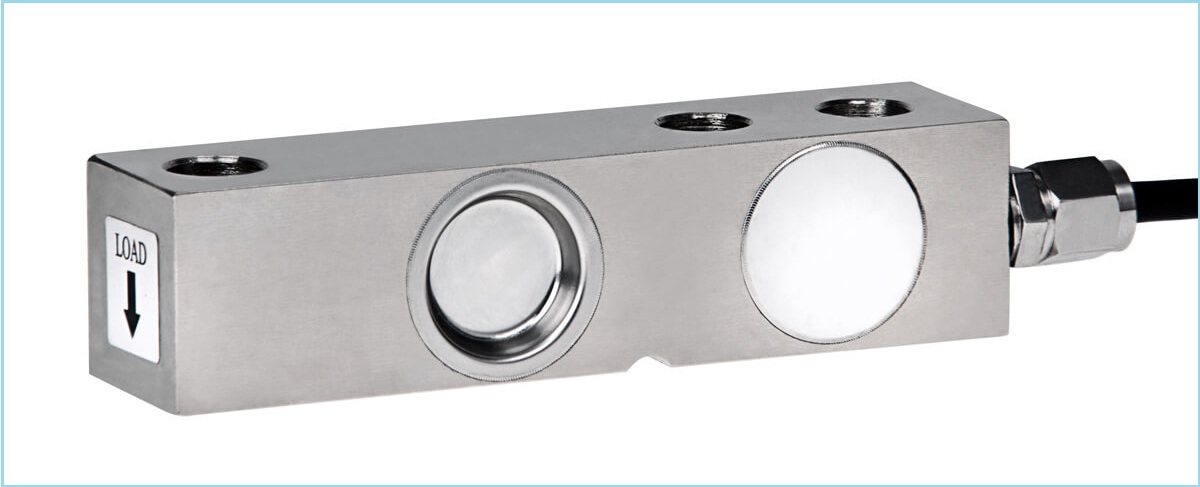

Shear Beam Type Load Cell

The Shear Beam Type Load Cell is a highly reliable and accurate sensor designed for industrial weighing applications. It is widely used in platform scales, conveyor scales, hopper and tank weighing systems due to its excellent linearity and precision under load.

Manufactured from high-grade alloy steel or stainless steel, this load cell provides strong resistance to side loads and shock loads. Its compact size, robust design, and hermetically sealed construction make it ideal for heavy-duty and outdoor applications.

• Capacity of 300Kg to 10 Ton.
• Fully welded and hermetically sealed stainless steel construction, with protection class IP68/IP69K.
• Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501.
• Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 5000kg, 7500kg and 10,000kg.
• Wide operational temperature range: -30 °C to +70 °C.
• Options: ATEX approval, Parylene coating for the load cell when used in extremely harsh environments, as well as a version for high temperature use.
