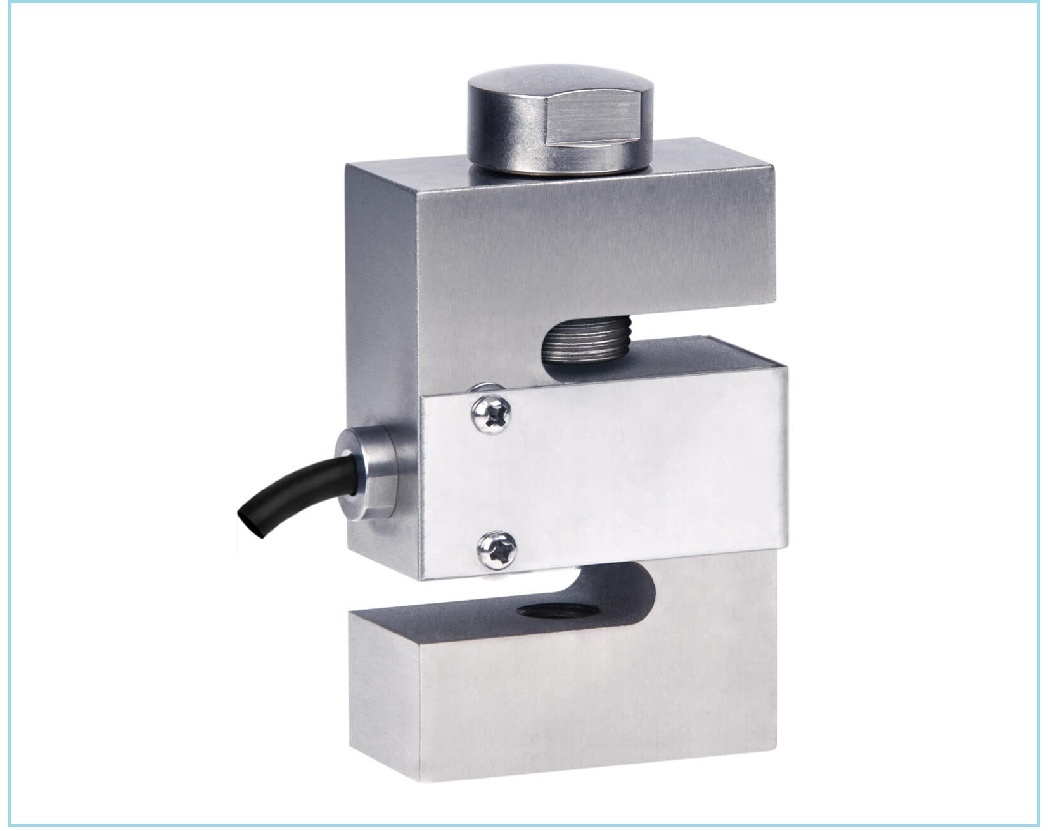

S Type Load Cell

S Type Load Cell

The S Type Load Cell is a versatile and highly reliable sensor widely used for tension and compression force measurement. Designed with an “S” shaped body, it provides excellent accuracy and repeatability, making it ideal for industrial weighing, force measurement, and testing applications.

Known for its robustness and compact size, the S Type Load Cell can be easily integrated into a wide range of weighing systems, including hopper scales, bag filling systems, tank/silo weighing, and crane weighing applications. With high overload protection and long-term stability, it ensures reliable performance in demanding environments.

• Capacity of 50Kg to 10 Ton.
• High quality nickel plated alloy steel, corrosion resistant.
• Fully potted and sealed to IP67.
• 2 mV/V sensitivity and 6-wire connection (with sense wires).
• Can be used in tension or compression (not for through-zero dynamic use).
• Optional high temperature version for use up to +150 °C.
• Polyurethane cable.
• 3 year warranty.
• Option: zinc plated steel rod end bearings for attachment.
