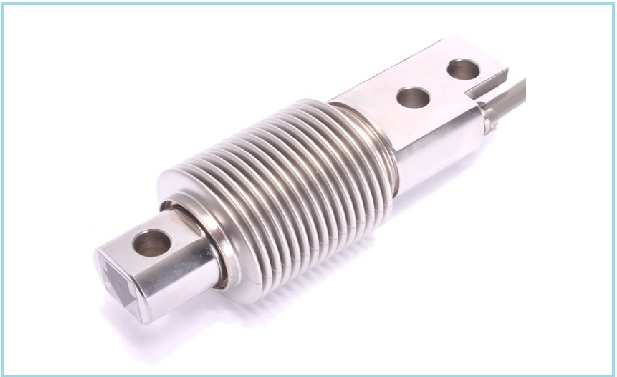

Bending Beam Type Load Cell

The Bending Beam Type Load Cell is designed for precise and stable measurement of weight in small to medium capacity applications. Its unique bending beam structure ensures high sensitivity and consistent performance, making it ideal for process weighing, packaging, and industrial automation.

Constructed from stainless steel or alloy steel, this load cell is compact, lightweight, and highly durable. Its low-profile design allows easy integration into weighing platforms, conveyor systems, and hopper scales, even in limited space environments.

• Capacity of 5 Kg to 500 Kg.
• Fully welded and hermetically sealed stainless steel construction, with protection class IP68/IP69K.
• Complies with OIML R60 regulations up to 3000 divisions (C3) or 6000 divisions (C6) for scales according to EN 45501.
• Nominal capacities: 5kg, 10kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg.
• Nominal capacities (C6 version): 50kg, 75kg, 100kg, 150kg, 200kg, 250kg.
• 6 wire (with sense wires) configuration as standard.
• Wide operational temperature range: -30 °C to +70 °C.
• Options: Parylene coating for the load cell when used in extremely harsh environments, as well as a version for high temperature use.
